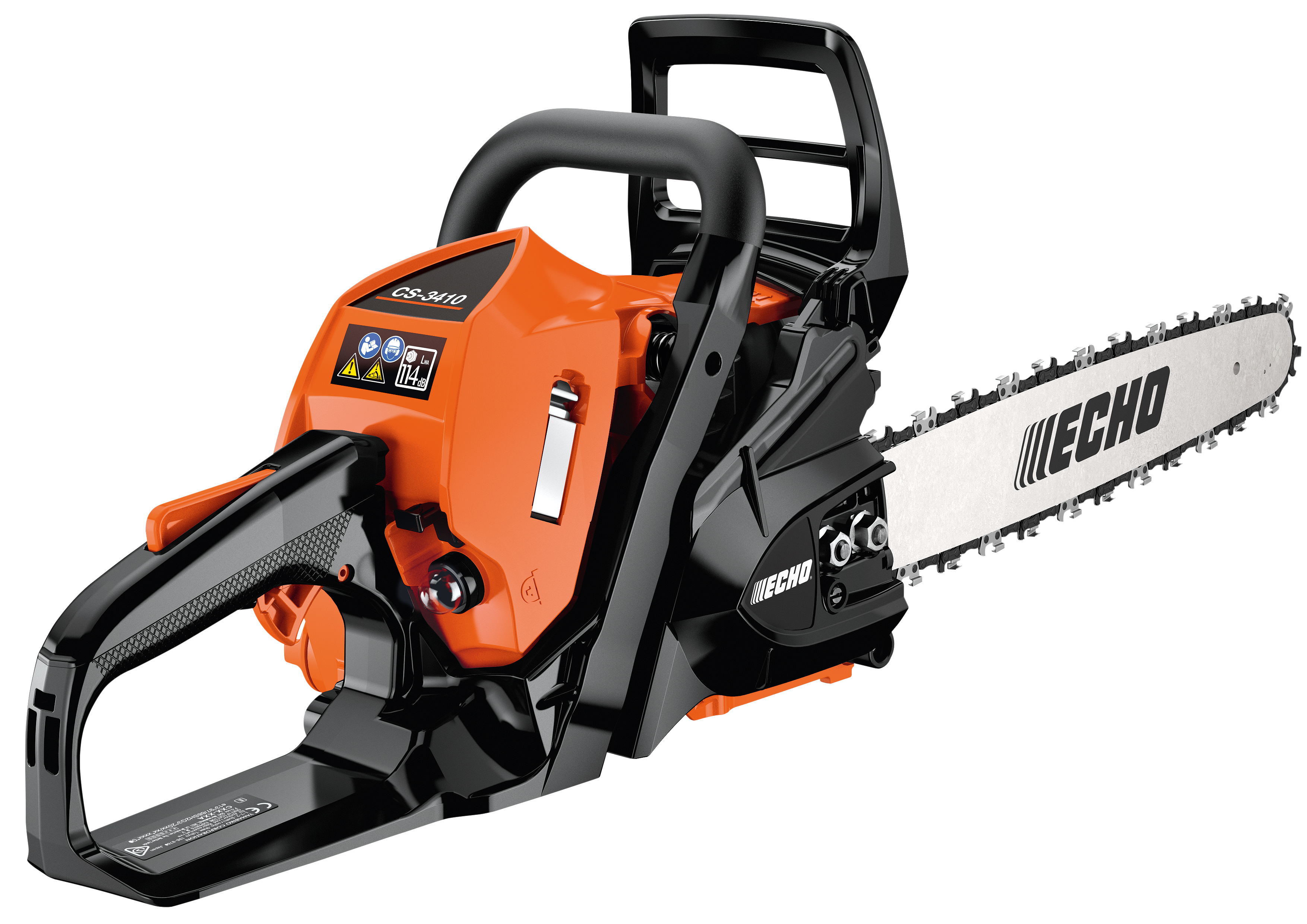

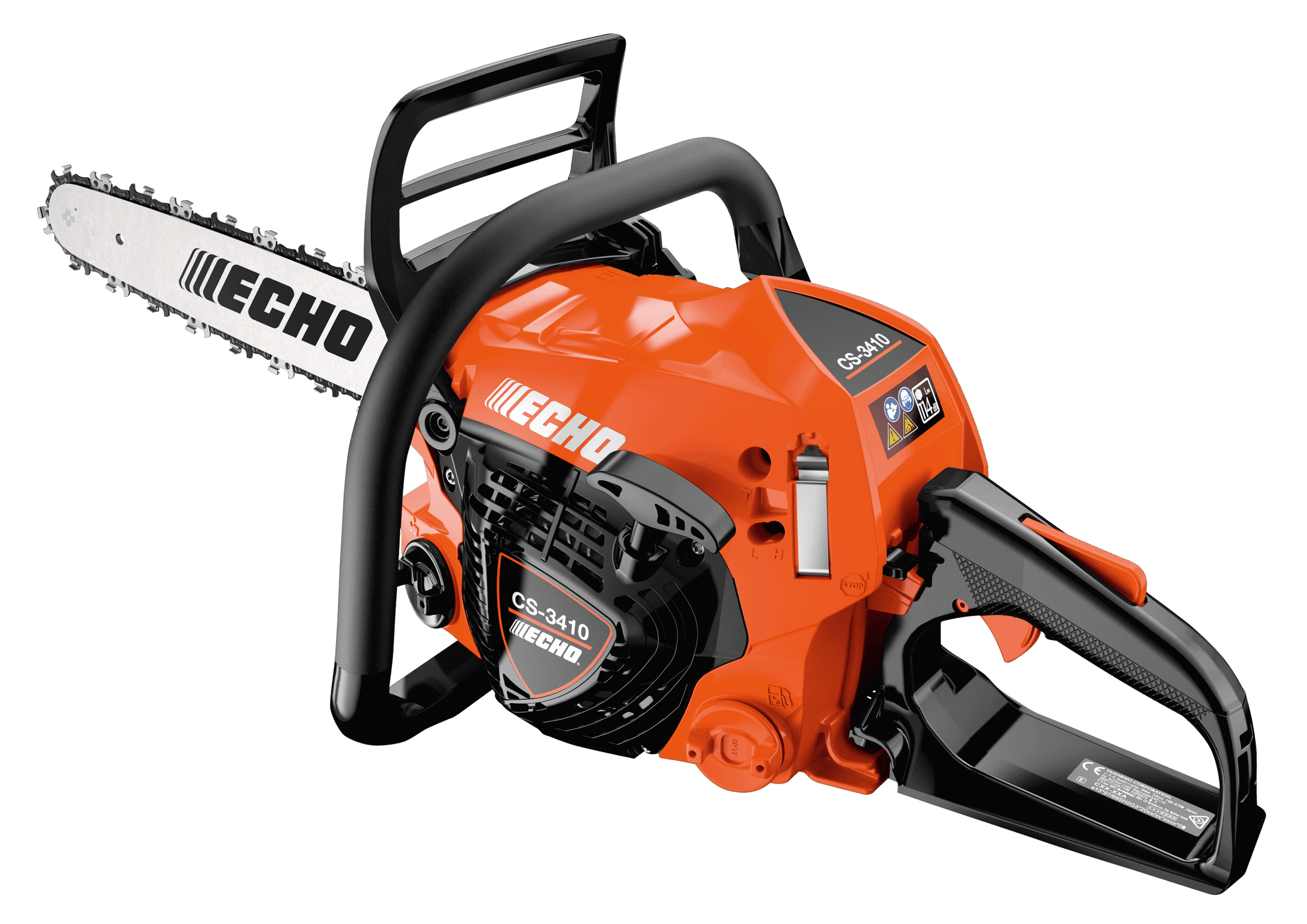

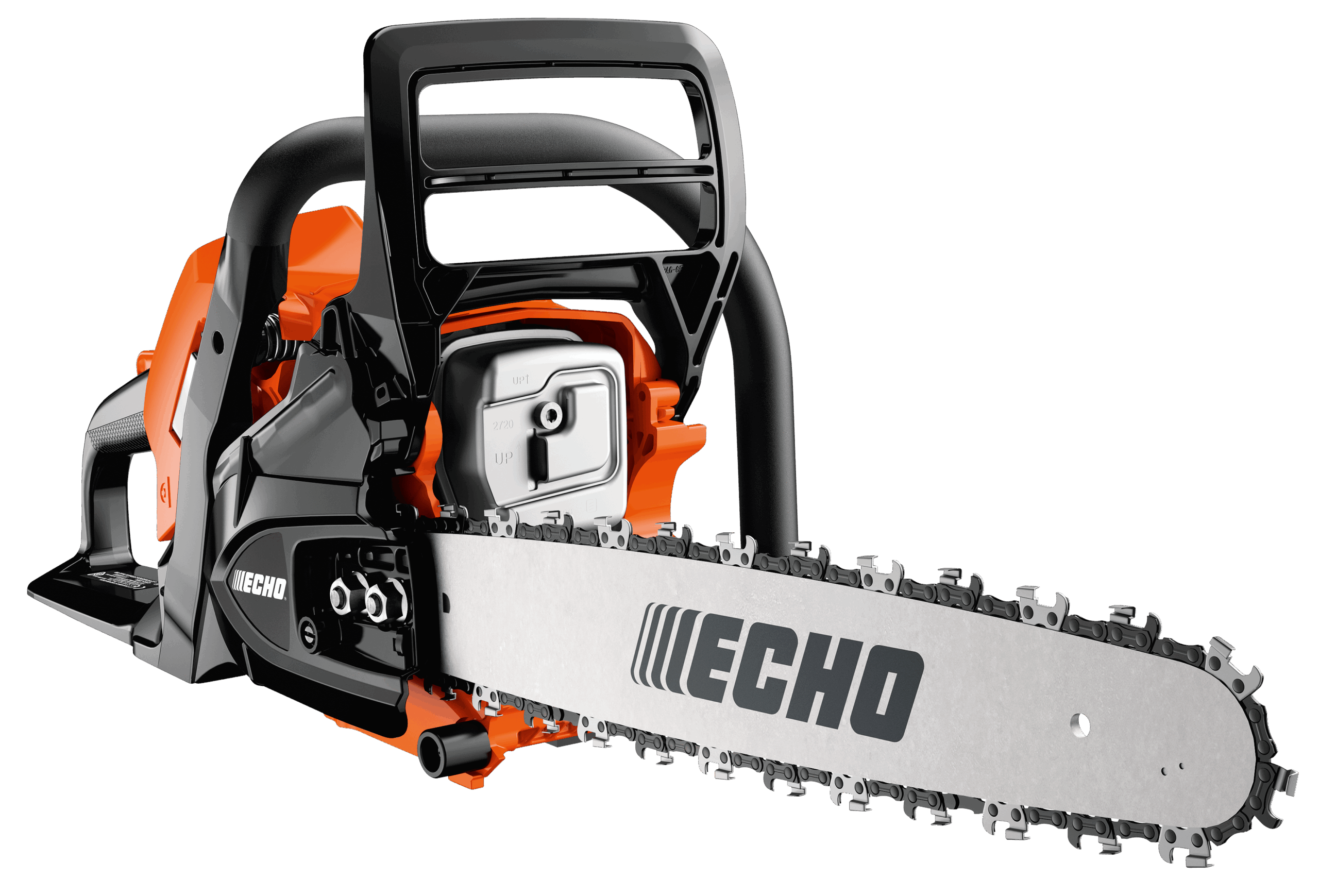

Echo CS 3410 Chainsaw

The lightweight Echo CS 3410 Chainsaw joins ECHO’s growing line-up of entry level chainsaws.
It is a light-duty petrol chainsaw designed for occasional use, excelling at a wide
variety of tasks such as basic firewood cutting and felling of small trees.

Technical Features:

• Extra light dry weight for its class - 3.7kg without cutting equipment
• 34.4cc 2 stroke engine - stratified scavenging engine operating without
catalytic converter
• Clutch-driven automatic lubrication system keeps the chain oiled while
minimising waste at idle
• Roller style chain catcher for better chain durability and safety
• Icing plug for cold conditions

Benefits:

• Category leading low weight and compact modern design to reduce fatigue

• ES-Start system to ensure effortless machine start-up
• Purge pump for faster and more convenient start
• User-friendly and efficient momentary switch reduces risk of engine flooding
• Quick level checks with both translucent oil and fuel tanks
• Virtually no oil-leaking thanks to ECHO unique 2-chamber oil tank and breather system
• Quick and convenient maintenance – only two clips to access the cylinder and
filter cover
• Less maintenance with the G-Force engine air pre-cleaner reducing engine exposure
to dirt and debris
• Excellent manoeuvrability and comfort for the operator thanks to the spring
anti-vibration system

Product Specifications:

Engine
displacement
(cc)
Output
(kW)
Dry
weight*1
(kg)
Fuel tank
capacity
(mL)
Chain oil
tank
capacity
(mL)
Chain type
(chain pitch)
Guide bar
gauge
(inch)
Applicable
bar length
(cm/inch)
34.4 1.3 3.7 280 230 91PX
(3/8") 0.050 30 / 12
35 / 14
